Wózek HG
|
Seria Wielkość |

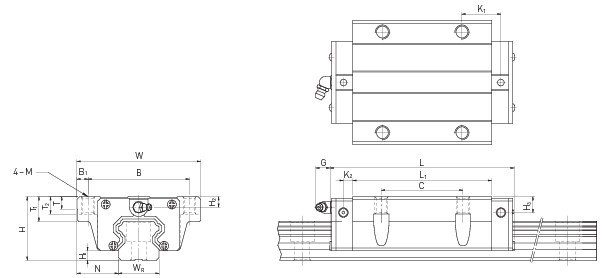

Wymiary montażowe [mm] |
Wymiary wózka [mm] |
Nośność dynamiczna Cdyn [N]* |
Nośność statyczna C0 [N] |
CAD | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| H | W | B | C | L1 | L | M | ||||
| HGW15CC | 24 | 47 | 38,0 | 30 | 39,4 | 61,4 | M5 | 11380 | 16970 | |
| HGW20SC | 30 | 63 | 53,0 | — | 29,5 | 54,3 | M6 | 12190 | 16110 | |
| HGW20CC | 30 | 63 | 53,0 | 40 | 50,5 | 77,5 | M6 | 17750 | 27760 | |
| HGW20HC | 30 | 63 | 53,0 | 40 | 65,2 | 92,2 | M6 | 21180 | 35900 | |
| HGW25CC | 36 | 70 | 57,0 | 45 | 58,0 | 84,0 | M8 | 26480 | 36490 | |
| HGW25HC | 36 | 70 | 57,0 | 45 | 78,6 | 104,6 | M8 | 32750 | 49440 | |
| HGW30CC | 42 | 90 | 72,0 | 52 | 70,0 | 97,4 | M10 | 38740 | 52190 | |
| HGW30HC | 42 | 90 | 72,0 | 52 | 93,0 | 120,4 | M10 | 47270 | 69160 | |
| HGW35CC | 48 | 100 | 82,0 | 62 | 80,0 | 112,4 | M10 | 49520 | 69160 | |
| HGW35HC | 48 | 100 | 82,0 | 62 | 105,8 | 138,2 | M10 | 60210 | 91630 | |
| HGW45CC | 60 | 120 | 100,0 | 80 | 97,0 | 139,4 | M12 | 77570 | 102710 | |
| HGW45HC | 60 | 120 | 100,0 | 80 | 128,8 | 171,2 | M12 | 94540 | 136460 | |
| HGW55CC | 70 | 140 | 116,0 | 95 | 117,7 | 166,7 | M14 | 114440 | 148330 | |
| HGW55HC | 70 | 140 | 116,0 | 95 | 155,8 | 204,8 | M14 | 139350 | 196200 | |
| HGW65CC | 90 | 170 | 142,0 | 110 | 144,2 | 200,2 | M16 | 163630 | 215330 | |
| HGW65HC | 90 | 170 | 142,0 | 110 | 203,6 | 259,6 | M16 | 208360 | 303130 | |
